This unit was open and briefly powered on

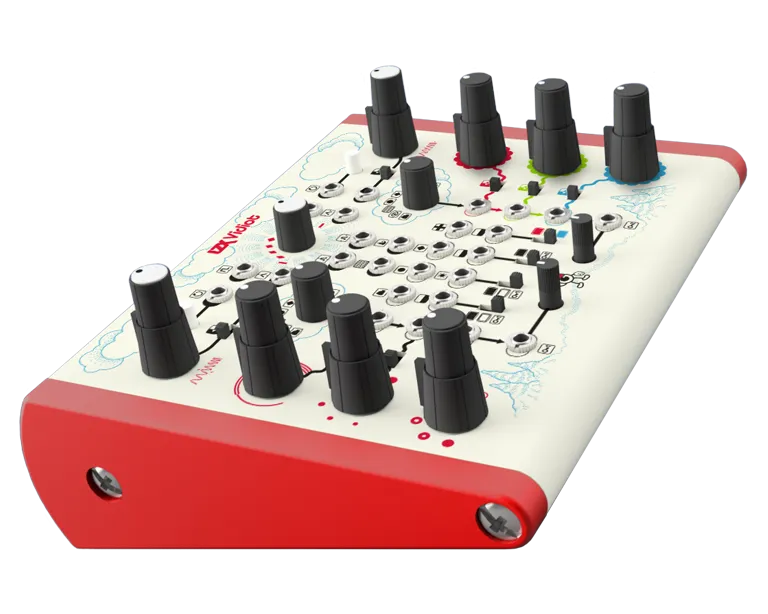

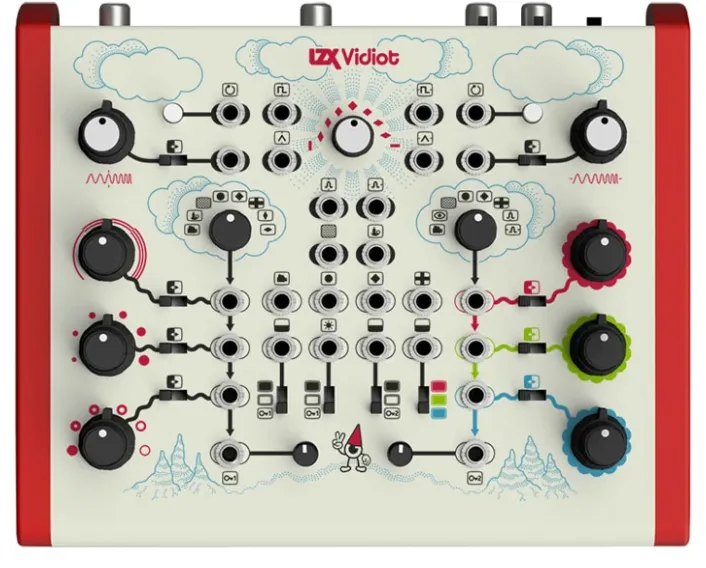

A Complete Visual Instrument
Vidiot is a complete instrument for analog video synthesis and processing. Everything you need to connect to a display and create video art is in the box.
Past Tech Made New
LZX Industries worked with video synthesis visionary Dan Bucciano to bring the design philosophy of the 1970’s into a totally new and groundbreaking device for video artists.
Modular Synthesis Compatability
Vidiot is fully compatible with all existing LZX EuroRack video synth modules. Like our modules, any audio or control voltage source can be patched to any of its 13 patch inputs.
FEATURES
Video Oscillators
2 analog discrete-core VCOs, one dedicated to horizontal pattern elements, and the other dedicated to vertical pattern elements. 3 waveshapes from each oscillator: Sine, Triangle and Square. Dedicated sync inputs and bypass switches.
Shape Generator
Symmetry knob controls the mix of horizontal and vertical VCO outputs. Three two dimensional shape outputs: Circle, Diamond and Crosshatch.
Noise Generators
2 noise outputs include ultra wide spectrum white noise for television static and snow effects, and an ultra low frequency noise for flickering motion resembling candle light.
Modulation Routing
Dual 8 position rotary switches select modulation sources for the Luminance Processor and Colorizer, enabling quick access to most of the instrument’s features without patch cables.
Dual Controls
Dual concentric control knobs provide CV level and offset in the same footprint as a single knob.
Colorizer

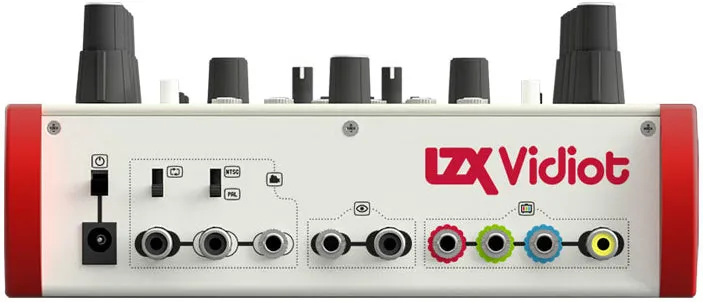

Colorize external video or internally generated patterns, with dedicated voltaged controlled sections for Red, Green and Blue. Keyer controlled functions include full color negative and selectable single color negative effects. Dedicated composite video and 1V RGB outs.
Luminance Processor
Process the grayscale range of external video or internally generated patterns, with dedicated voltaged controlled sections for Brightness, Contrast and Detail. Keyer controlled functions include negative and solarize effects. Dedicated video output.
Key Generators
2 hard key generators with adjustable threshold levels, each dedicated to the Luminance Processor and Colorizer effect sections.
... ALSO COMES WITH
- 16-page User Manual
- Vinyl Sticker
- 5VDC 1.2A Universal Input Voltage Power Adapter (includes plugs for US, UK, EU, Australia and China)
- Video RCA Cable (5 ft / 1.5M length)
- 2x Patch Cables (6 inch lengths, 1 red, 1 blue)
- Stereo Audio RCA Input Adapter
- Official Vidiot Birthday Party Hat
